ESP32-S3-Plus Expansion Board for Arduino UNO R3/R4

ESP32-S3-Plus Expansion Board for Arduino UNO R3/R4

🔥 $8.00 off over $200.00

SKU:ZYZ0356

$6.99
$6.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Order now
  • Fast delivery
  • 30-Days Warranty
  • Safe payment
View full details

Description

Tscinbuny ESP32-S3-Plus Expansion Board for Arduino UNO R3/R4 Programming Learning Controller About ESP32-S3-PLUSESP32-S3-PLUS is a high-performance development board with an appearance aperture compatible with Arduino UNO R3/R4, based on the design of the ESP32-S3-WROOM-1-N16R8 module, the ESP32-S3-WROOM-1-N16R8 module owns 16MB...

Read More

Tscinbuny ESP32-S3-Plus Expansion Board for Arduino UNO R3/R4 Programming Learning Controller

About ESP32-S3-PLUS

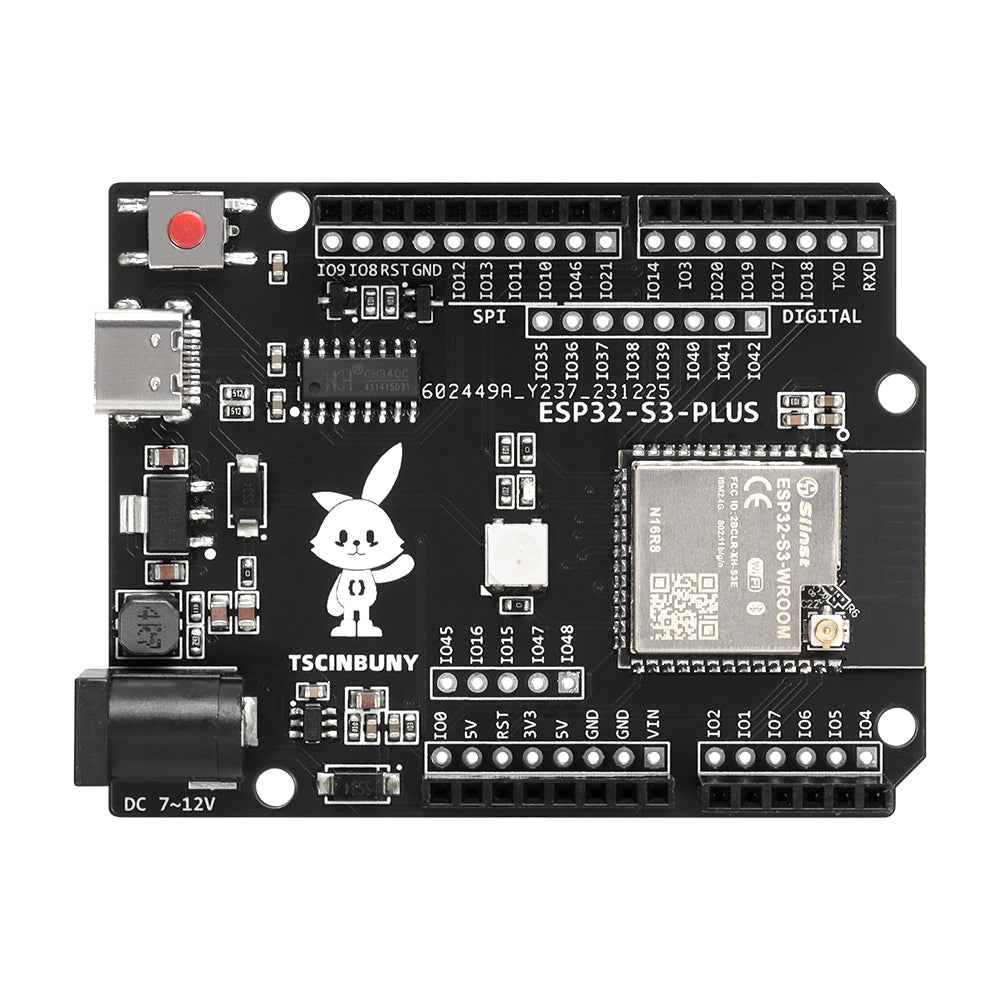

ESP32-S3-PLUS is a high-performance development board with an appearance aperture compatible with Arduino UNO R3/R4, based on the design of the ESP32-S3-WROOM-1-N16R8 module, the ESP32-S3-WROOM-1-N16R8 module owns 16MB Flash and 8MB PSRAM, which can store more codes and data, the module is equipped with ESP32-S3 chip which has powerful neural network. The ESP32-S3 chip equipped in the module has powerful neural network computing ability and signal processing ability.

It supports Wi-Fi and Bluetooth 5.0 dual-mode communication, which reduces the difficulty of device networking, and also supports Bluetooth Mesh protocol and Loxin Wi-Fi Mesh to realize higher communication stability and a larger coverage area. Home industry unified standard devices, applicable to a wide range of IoT scenarios.

It can be programmed using Arduino IDE, ESP-IDF, MicroPython, and C language, python can easily manipulate the hardware.

Product Features

Adopts ESP32-S3-WROOM-1-N16R8 modules.

Built-in ESP32-S3 series SoC, Xtensa® dual-core 32-bit LX7 microprocessor.

16MB Flash, 8MB PS RAM, 384kB ROM.

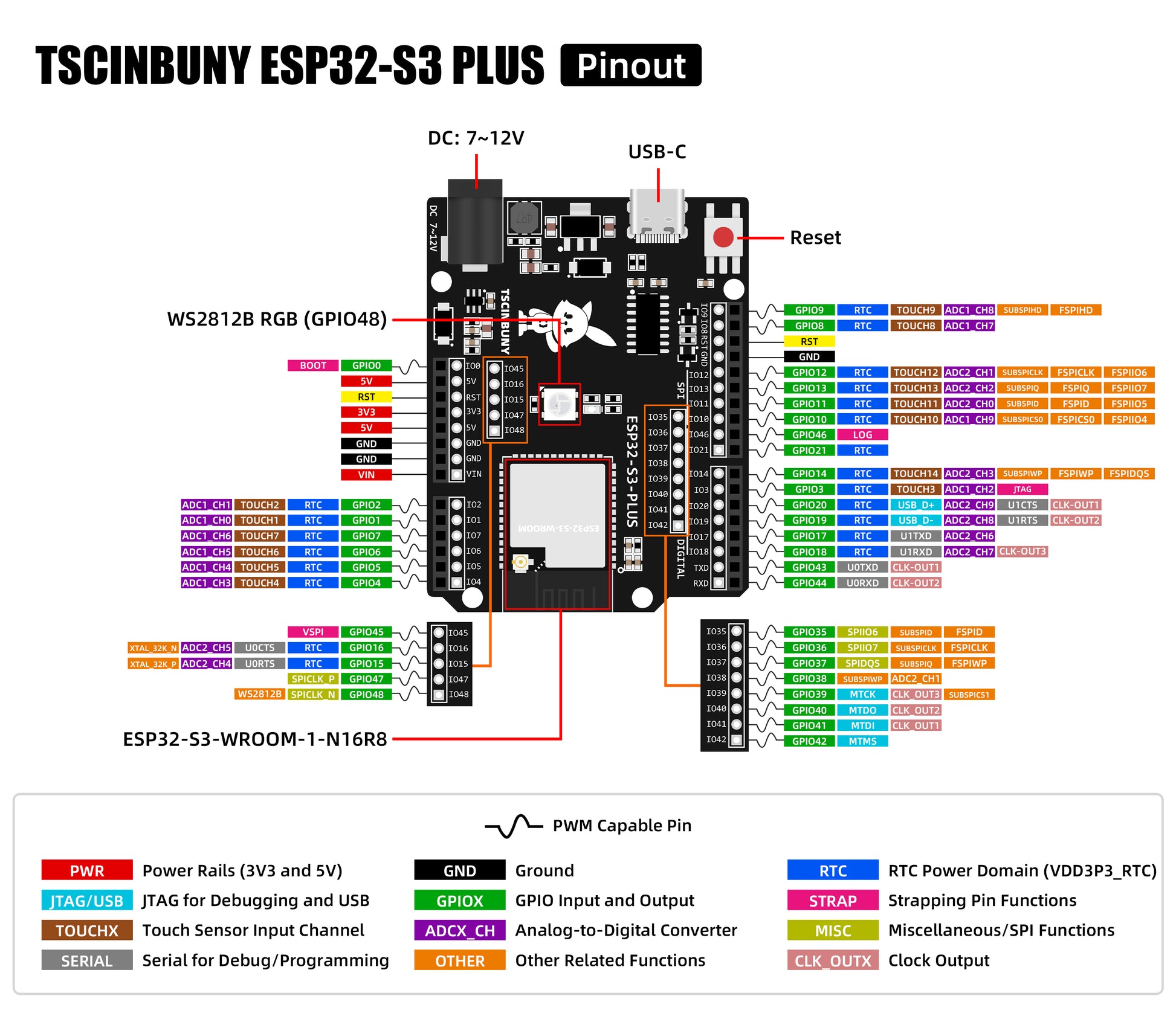

36 GPIO ports

On-board PCB antenna with external antenna support

Supports 802.11b/g/n standard 2.4GHz Wi-Fi, Bluetooth 5.0

Data Rate 150Mbps

ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB

DC header voltage supply 7~9V, USB interface supply 5V

Operating Temperature -40°C ~ 65°C (TA)
