Tscinbuny ESP32 Robot with Automation Kit, Ideal for Arduino - Compatible Programmable Coding Robot Building Without Battery

Tscinbuny ESP32 Robot with Automation Kit, Ideal for Arduino - Compatible Programmable Coding Robot Building Without Battery

🔥 $8.00 off over $200.00

SKU:ZYC0201

Regular price $83.26
Sale price $83.26 Regular price
Sale Sold out
Tax included. Shipping calculated at checkout.

Order now
  • Fast delivery
  • 30-Days Warranty
  • Safe payment
View full details

Description

Smart Tracked Wheel Robotics Car - Ultimate STEM Learning Platform I. Product OverviewThis intelligent tracked-wheel robotics car combines cutting-edge technology with endless fun. Built around the powerful ESP32 WROOM32 mainboard and enhanced with ESP32 L293D motor drivers, it delivers superior...

Read More

Smart Tracked Wheel Robotics Car - Ultimate STEM Learning Platform


I. Product Overview

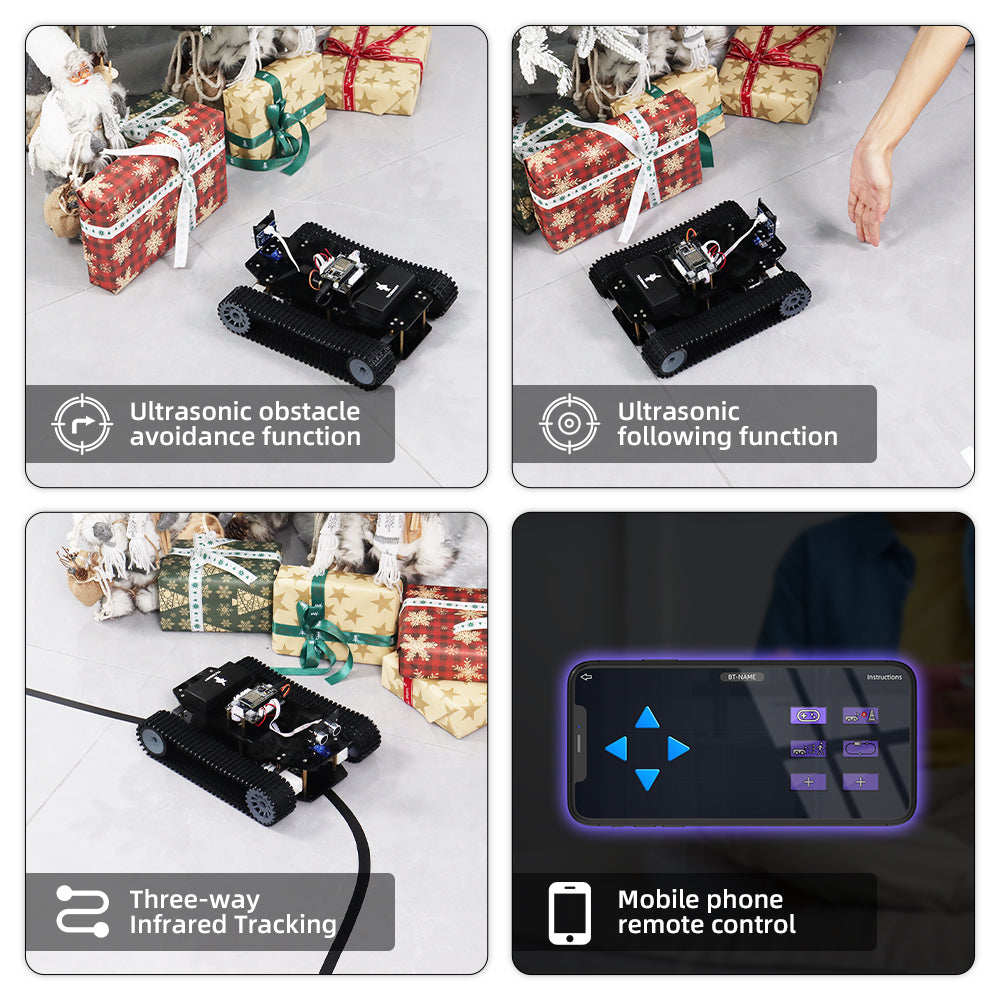

This intelligent tracked-wheel robotics car combines cutting-edge technology with endless fun. Built around the powerful ESP32 WROOM32 mainboard and enhanced with ESP32 L293D motor drivers, it delivers superior control and dynamic performance. Packed with advanced features like 180° servo-assisted obstacle avoidance, ultrasonic following, and 3-channel line tracking, this STEM robot opens exciting possibilities for tech exploration.


II. Core Technologies


  1. ESP32 WROOM32 Mainboard
    ✓ Dual-core 240MHz processor handles complex tasks
    ✓ Multiple interfaces: GPIO/UART/SPI/I2C for expansion
    ✓ Dual wireless: Wi-Fi & Bluetooth connectivity

  2. L293D Motor Driver System
    ✓ 2A current output for stable track-wheel movement
    ✓ Bidirectional motor control for precise maneuvers

  3. 180° Servo Obstacle Avoidance
    ✓ HC-SR04 ultrasonic sensor with 2cm-400cm detection
    ✓ G90 servo enables 180° scanning for full coverage

  4. Smart Following System
    ✓ Auto-follow mode maintains preset distances
    ✓ Adjustable tracking range (3mm precision)

  5. 3-Channel Line Tracking
    ✓ Multi-mode path following (straight/curved)
    ✓ Programmable logic for custom patterns


III. Key Features
 All-Terrain Design
• Reinforced track wheels for rough surfaces
• High-impact ABS construction

 Developer-Friendly

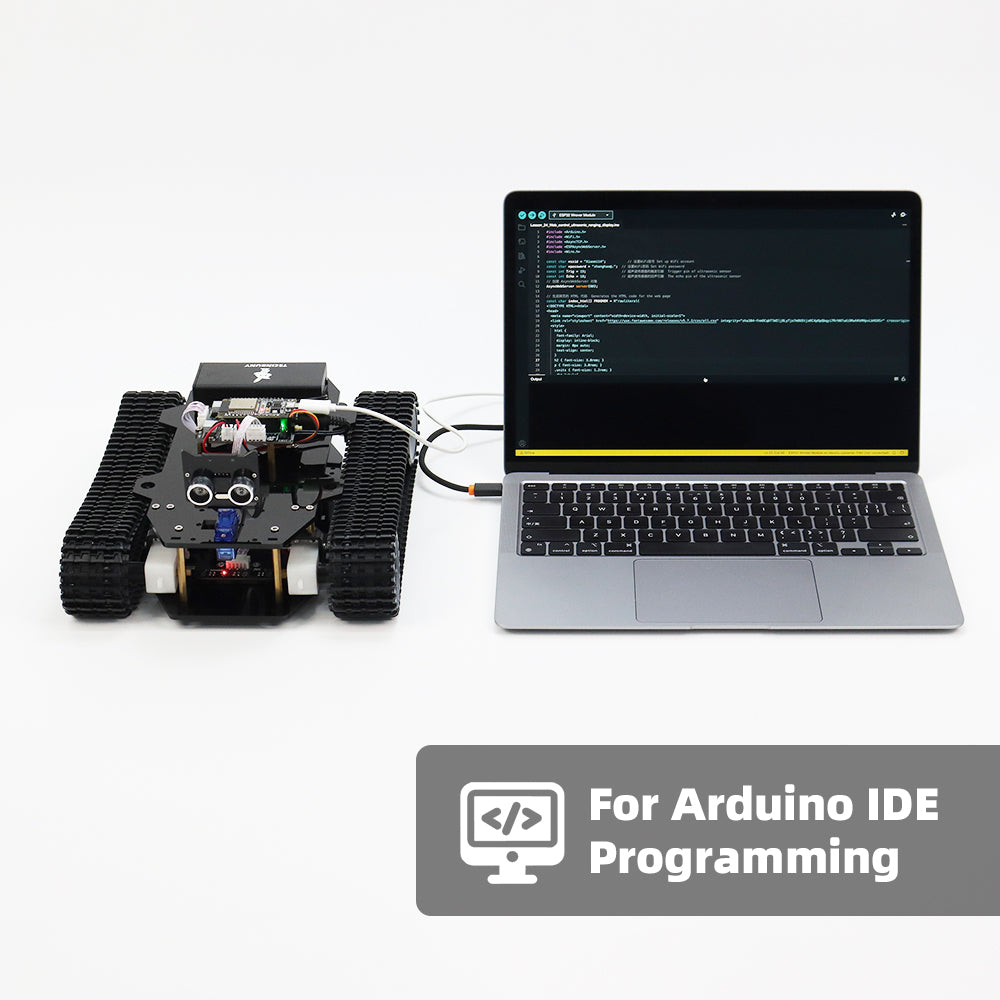

• Multi-language support (Arduino/MicroPython)
• Free tutorials & sample codes included

 Expandable Platform
• Multiple expansion ports for sensors/modules
• Open-source architecture for customization

 Interactive Learning
• 6-in-1 functionality (Avoid/Follow/Track/Custom)
• Programmable challenges & game modes


IV. Technical Specifications

Parameter

Specification

Motor Voltage

5V DC

Input Voltage

7-12V DC

Max Current

2A per channel

Motor Speed

200 RPM @5V

Ultrasonic Range

2cm-400cm (±3mm accuracy)

Wireless Protocol

BLE 4.2 + Wi-Fi 802.11 b/g/n

Programming

Arduino IDE/MicroPython

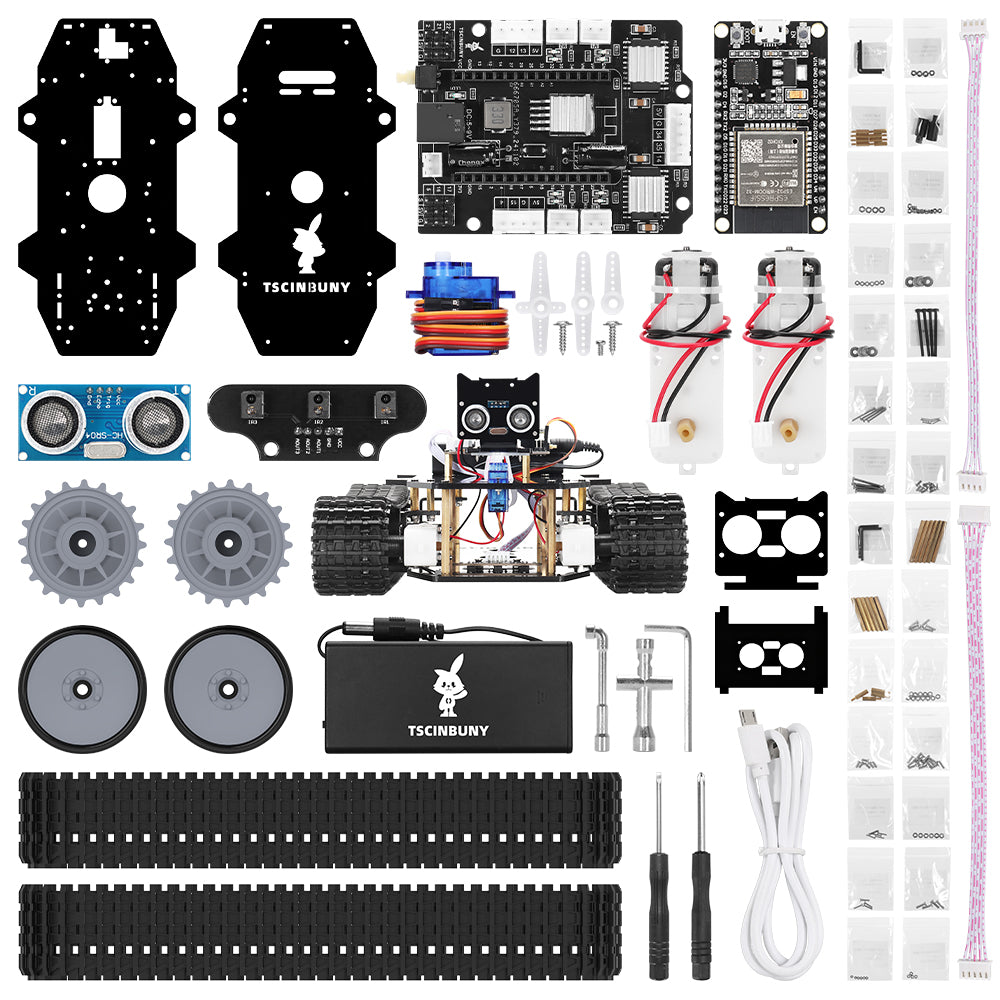

V. Package Includes
• Assembled tracked-wheel chassis
• ESP32 WROOM32 mainboard with L293D driver
• HC-SR04 ultrasonic module + G90 servo
• 3-channel line tracking sensor array
• USB programming cable
• Quick start guide

Read Less

Get in touch

tscinbunyzhiyi@gmail.com

The average response time is 24 hours.

Our customer support operates from Monday to Friday, between 9:00 AM and 6:30 PM.

1. In-stock Product: 3-7 workdays for delivery

2. Pre-owned Product: 4-8 workdays for delivery

3. Pre-order Product: We will ship the product according to the estimated delivery time on the page, after shipment, it takes 3-7 workdays for delivery.

No, the kit does not come with batteries included. However, it requires two batteries of the type 18650 3.7v. There's no specific capacity limit for the batteries needed.

Battery Specifications:
Battery Type: "Button Top" or "Flat Top" batteries
Model: 18650
Voltage: 3.7v
Capacity: No limit

The code is based on Arduino's C language. The software necessary for running the code is included.

Not all, but some kit with App, some without. We have a complete instructions with kit.

We have a manual with the kit that you can use to download all instructions from Dropbox. If you can't download it please leave your email address to us. We will send you as soon as possible!
