Tscinbuny NodeMCU ESP8266 V3 Development Board With 0.96 Inch OLED Display CH340 ESP-12F WiFi Module TYPE-C USB For Arduino/Micropython The ESP8266 Node MCU board has all the functionality of a traditional ESP8266 module with the same size and peripheral IO...

Read More

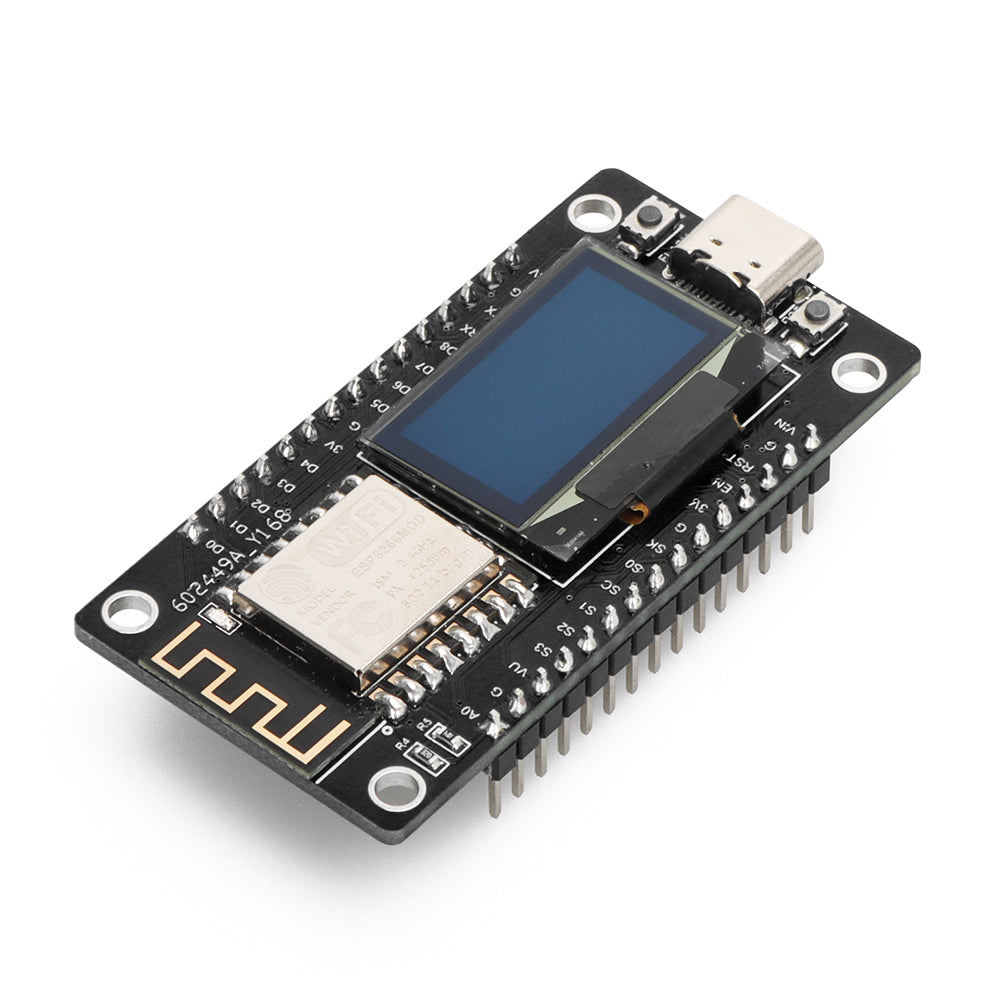

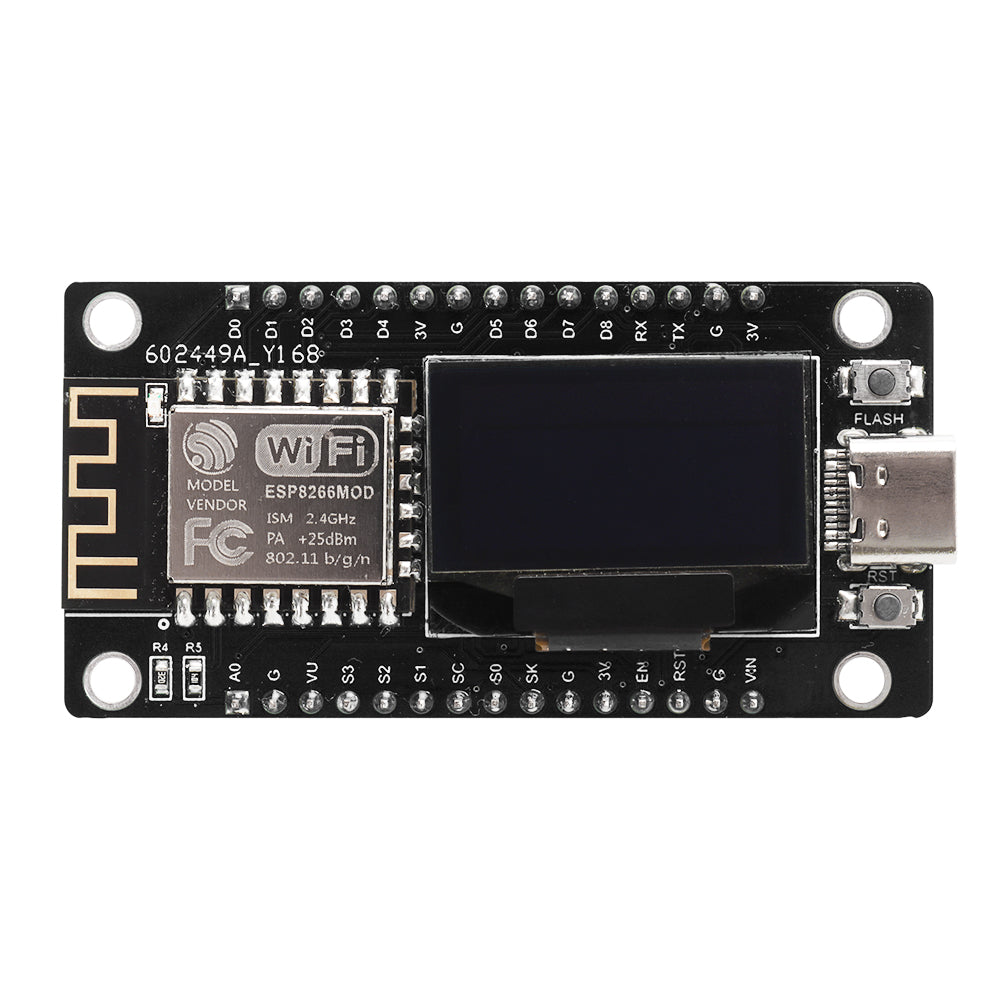

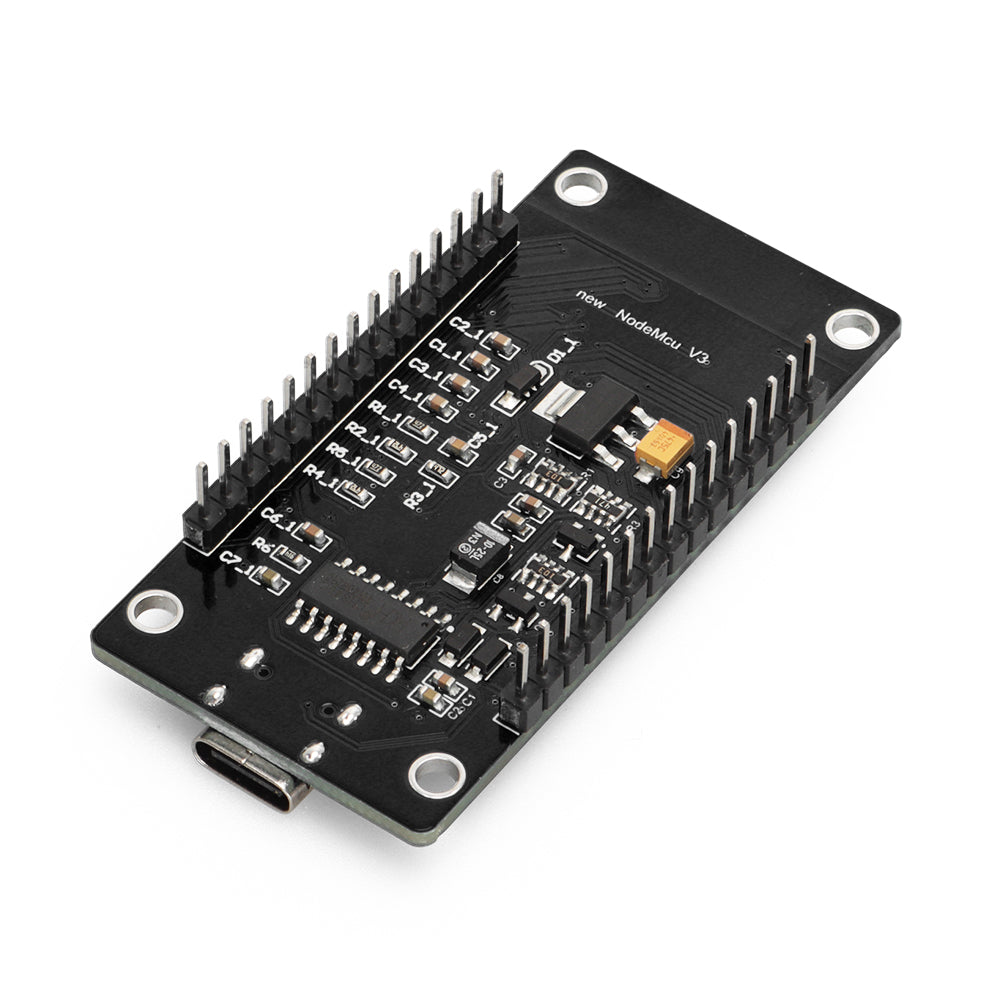

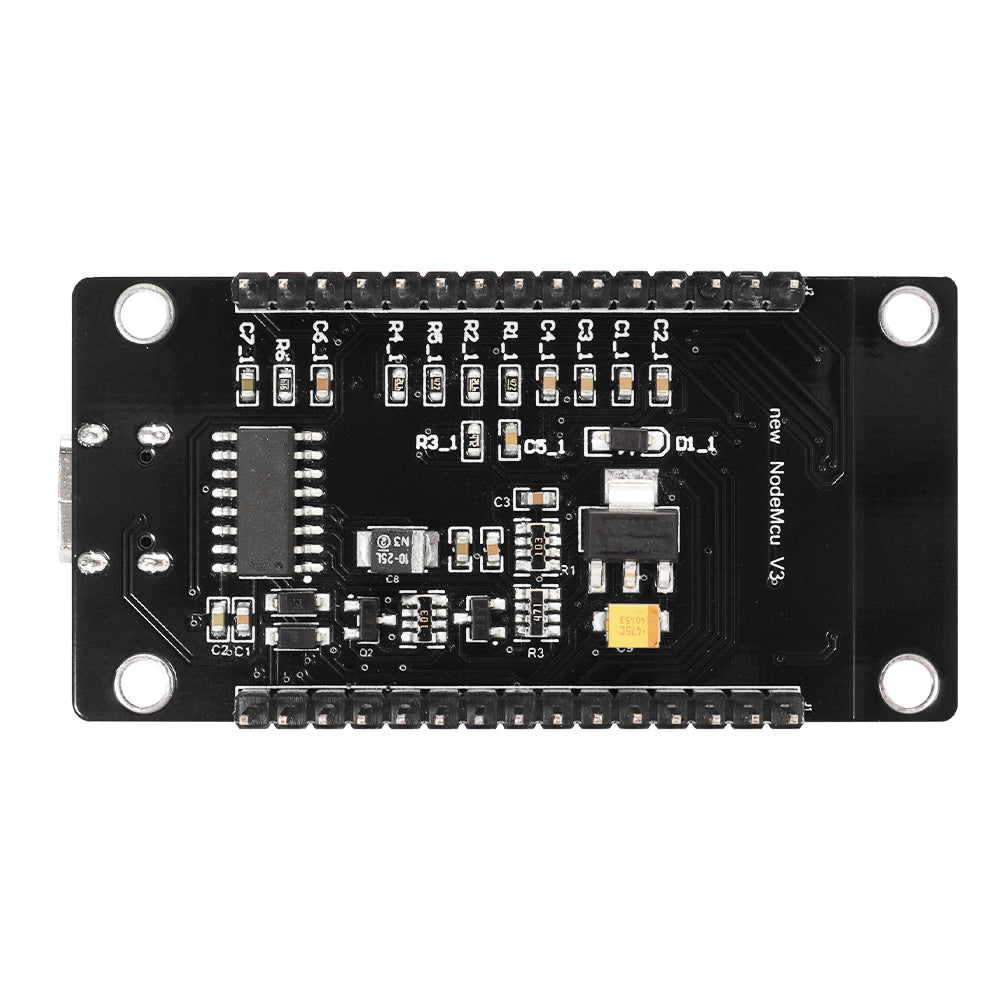

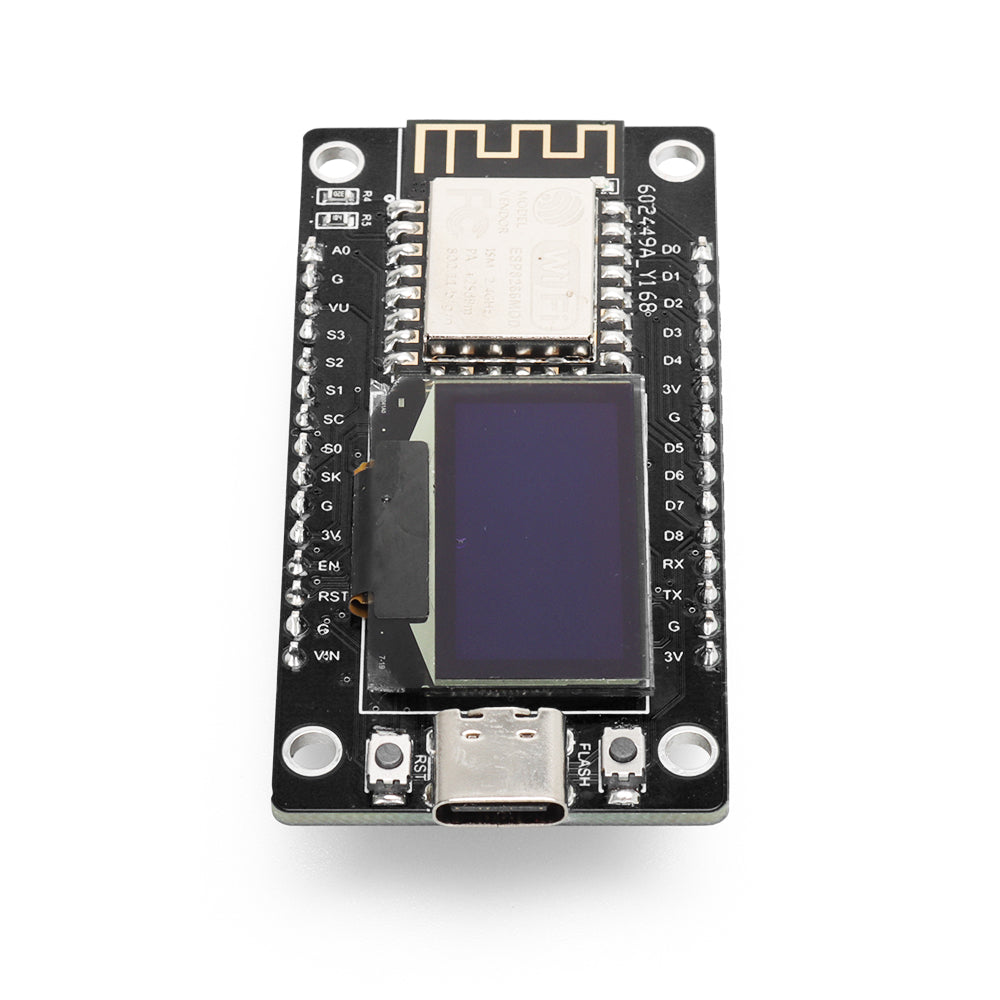

Tscinbuny NodeMCU ESP8266 V3 Development Board With 0.96 Inch OLED Display CH340 ESP-12F WiFi Module TYPE-C USB For Arduino/Micropython

The ESP8266 Node MCU board has all the functionality of a traditional ESP8266 module with the same size and peripheral IO ports for seamless integration with a 0.96" OLED display, eliminating the need for frustrating wires and boards.

The display has a high resolution 128X64 with SSD-1306 driver and is compatible with I2C, and SPI interfaces. In addition, it uses a Type-C USB cable connection. Say goodbye to confusing setups with the ESP8266 NodeMCU board.

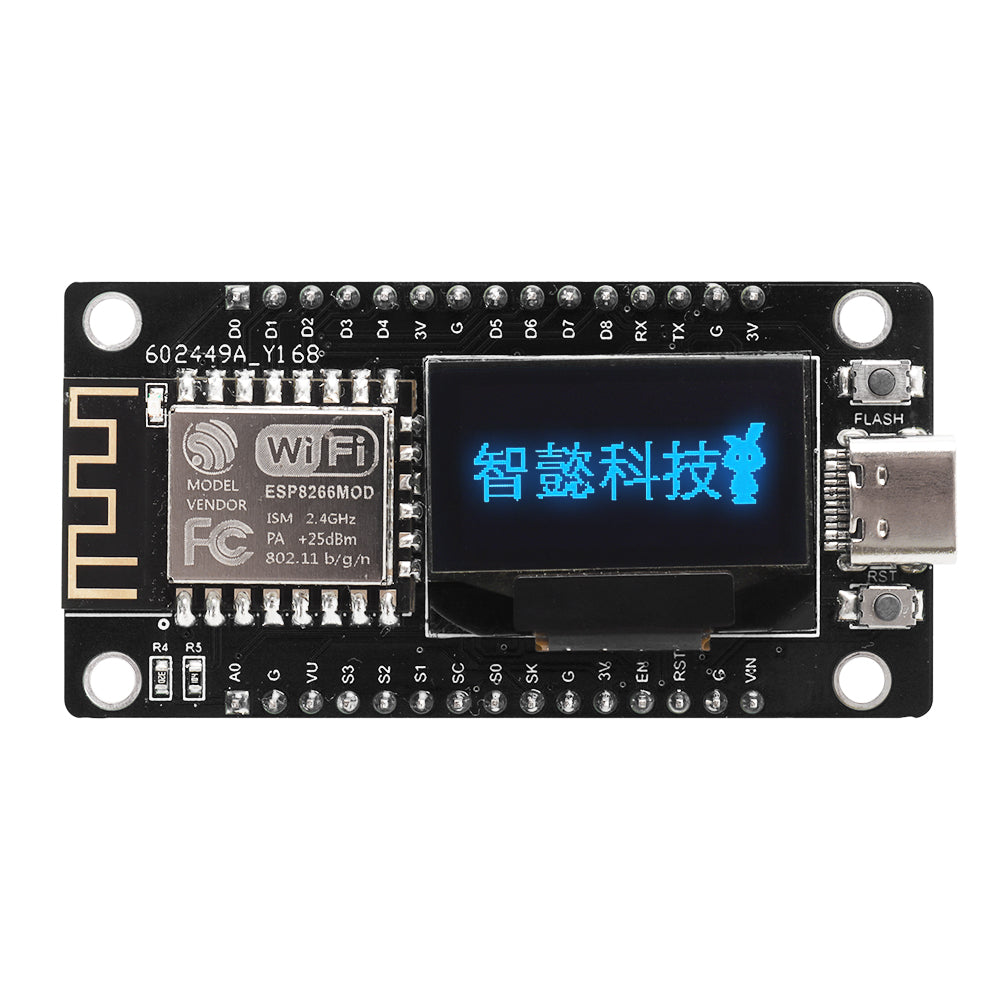

The board uses I2C to connect to the OLED display via GPIO5 (SCL) and GPIO4 (SDA) pins, with this board, it is easy to display various information and data.

To install the CH340 driver, search for the keyword "CH340 driver" in Google or Bing, and follow the prompts to install it.
, and follow the prompts to install. It is recommended to use the Win10 operating system.

The ESP8266 NodeMCU single board has the ESP-12E module, which contains the Tensllica Xtensa 32-bit LX06 RISC microprocessor that powers the ESP8266 chip. The processor supports a real-time operating system with an adjustable clock frequency between 80 MHZ and 160 MHZ. It also has 128KB of RAM and 4MB of flash memory, providing ample storage for data and programs. Its high processing power, built-in WI-FI, and deep sleep operation features make it an excellent choice for IOT projects.

ESP8266 Node MCU 0.96 inches

Specifications:
Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106
Driver: CH340G
Working voltage: 3.3V
Input voltage: 7-12V
Digital I/O pins (DIO): 16
ADC (Analog Input Pins): 1
Flash 4MB SRAM: 64KB Clock speed: 80mHZ
OLED size: 0.96 inches
Resolution: 128 X 64
OLED working temperature: -30℃~70℃
